Technical Specifications
Specifications
| Port | Description |
|---|---|
| Display | 10.1 inch Display, 1200x1920, 400cd/m2 |
| CPU | ARM64 |
| NPU | 1.2 TOPS Performance NPU - 8 Tensor Processors, 1 full functionality, 7 for AI voice |
| ROM | 16GB |
| RAM | 2GB LPDDR4X |
| Speaker | 4W single Speaker |
| Microphone | Single microphone |
| Buttons | Power / Home Button / Reset |

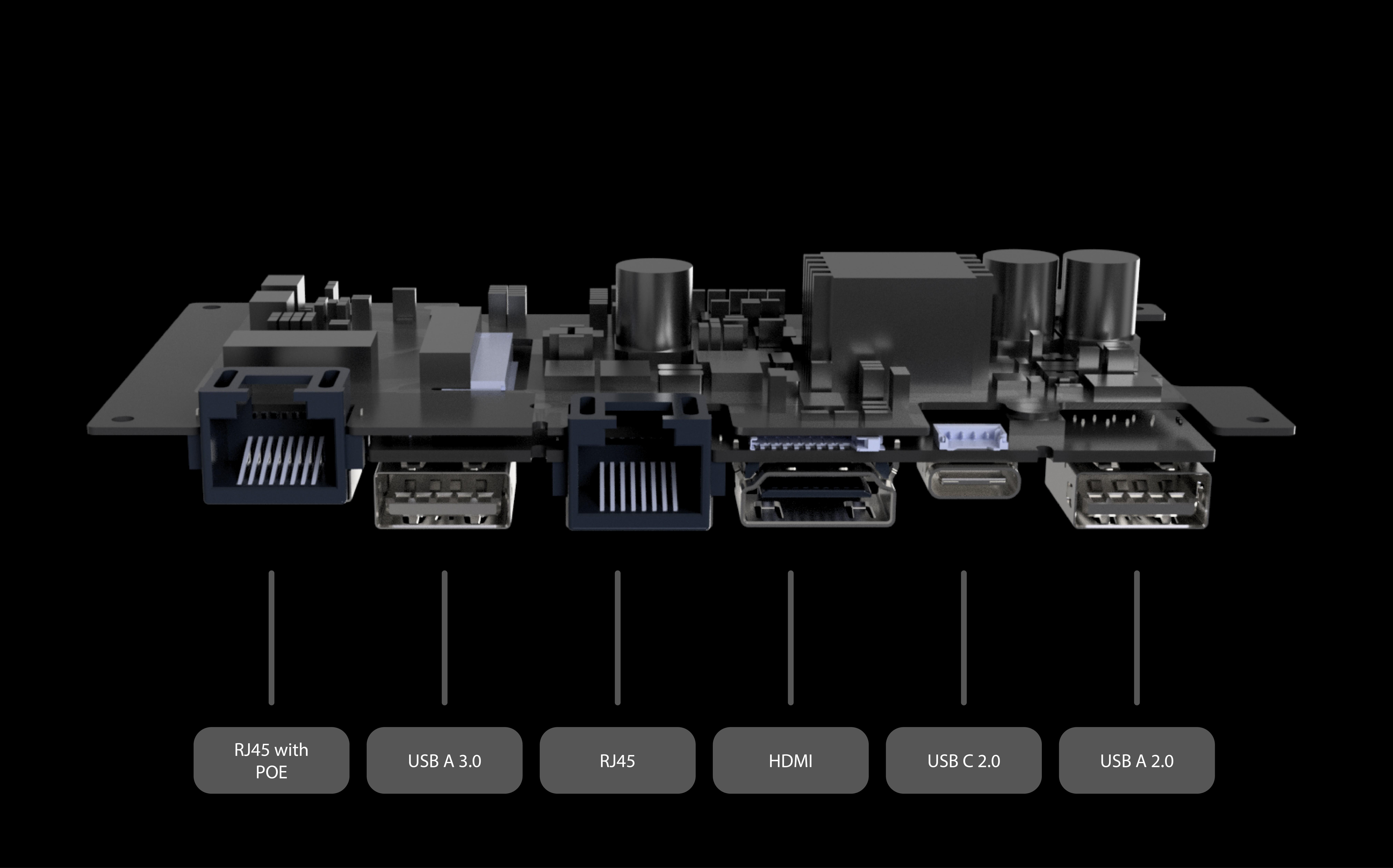

Ports
| Port | Description |
|---|---|
| RJ45 with POE Input | Main power source and connection to the elevator |
| USB-A 3.0 | Data connection & Updates |
| RJ45 | Ethernet for debugging |
| HDMI | Output to external display |
| USB-C 2.0 | Data connection & optional power delivery |
| USB-A 2.0 | Data connection |
